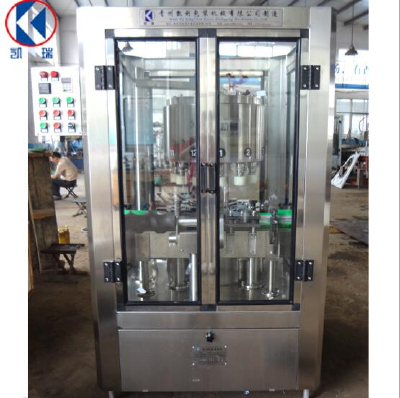

The machine is suitable for the quantitative filling of liquid in different bottle types, such as wine, beverage, condiment, liquid medicine and other liquid glass bottles filled with carbon dioxide gas.

1 main performance features and parameters:

(1) high precision: when the calibration capacity is 500 ml, the average error is 1.5 ml. The valve has been applied for professional technology, professional technical number: ZL200920027110.1

(2) the volume adjustment is the adjustment method of the whole adjustment and the manual adjustment, the filling quantity is accurate, the import digital display and the encoder, the filling capacity is directly reflected on the control board.

(3) high speed: 3000 bottles / hour (500ml/ bottle), frequency conversion stepless speed change.

(4) large capacity: the filling volume can be adjusted freely between 100-750 ml.

(5) a large range: to adapt to a variety of different shaped bottles and bottles of different diameters of the filling; the middle of the adjustable parts can not be replaced with adjustable parts can meet the height of the 140-300mm bottle filling.

(6) no loss of liquid: liquid paste bottle wall spray, can not afford to hop, no overflow.

(7) no broken bottles: the world's most advanced soft care institutions (elastic bottle device) is not high, high limit, the bottle is not in place, do not break the bottle damaged machine.

(8) automatic control level: floating ball liquid level control valve device to control the stability of the liquid level.

(9) soft start: the whole machine start without impact, running from low speed to high speed, will not break the bottle.

(10) with automatic protection: out of the bottle, the wheel is equipped with overload clutch protection device, automatic shutdown alarm occurs

(11) beautiful appearance: all of the machine and liquid contact parts and exposed parts are made of SUS304 stainless steel, in order to ensure that the filling liquid is not contaminated, in line with food hygiene standards.
